Beyond the Basics: A Technical Deep Dive into Bearing Design, Selection, and Innovation
Abstract: While bearings are ubiquitous mechanical components, their selection and application involve a complex interplay of tribology, material science, and precision engineering. This article provides a technical overview of bearing types, failure modes, and advanced technologies shaping the future of motion control.

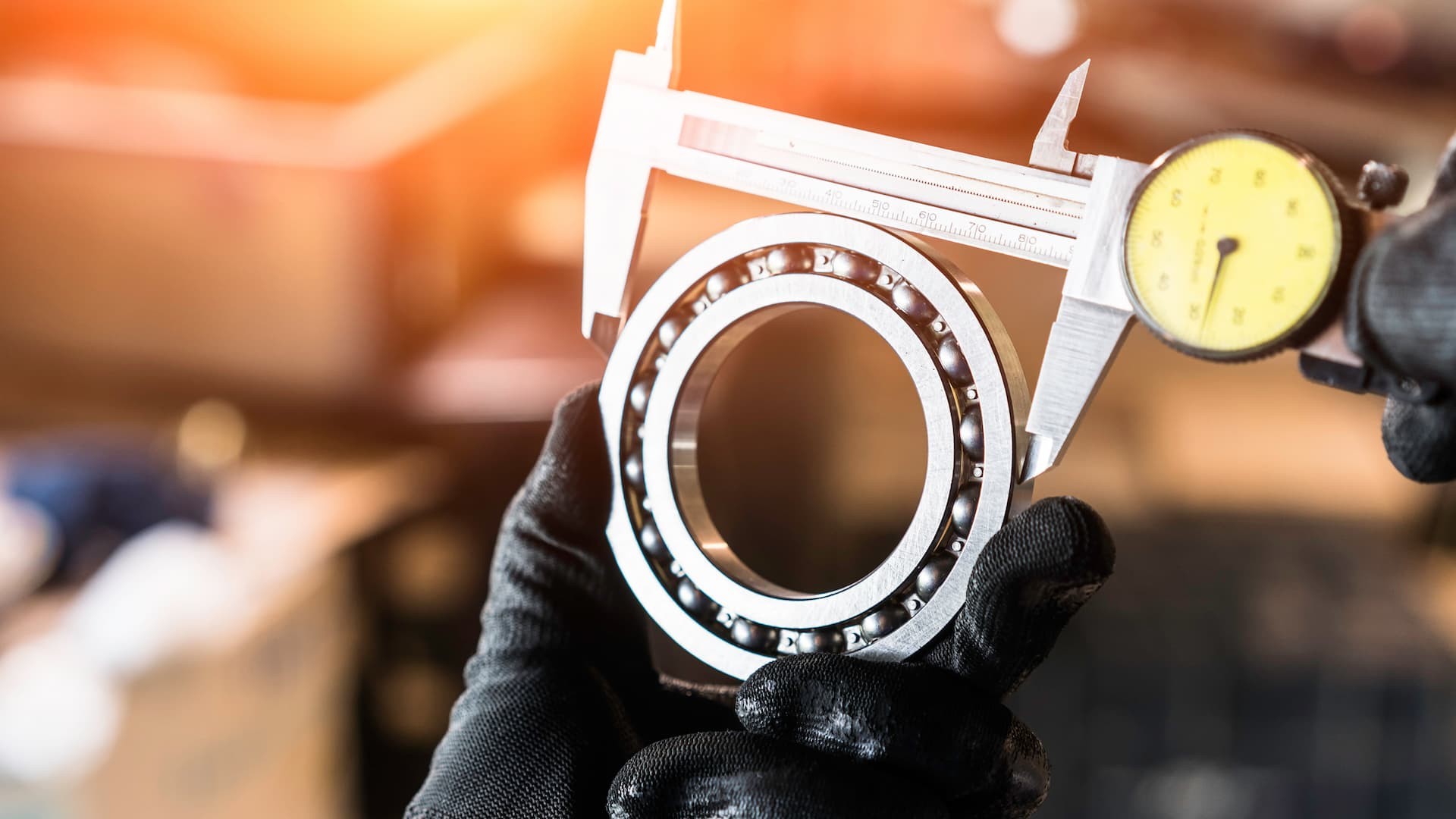

1. Bearing Fundamentals: More Than Just Rolling Elements
At its core, a bearing's function is to constrain relative motion to a desired mode while reducing friction. This is achieved through two primary design philosophies:
Rolling Element Bearings: Utilize balls, rollers, or needles to separate moving parts, primarily replacing sliding friction with lower rolling friction.
Plain Bearings: Rely on a sliding interface, often incorporating a lubricant-impregnated surface or a low-friction material like PTFE (Polytetrafluoroethylene).
The choice between these paradigms hinges on factors like load capacity, speed, required precision, and maintenance constraints.
2. A Technical Taxonomy of Rolling Element Bearings
Understanding the nuances of each type is critical for optimal selection.
| Bearing Type | Load Capacity | Typical Applications | Technical Notes |
| Deep Groove Ball | Moderate Radial, Some Axial | Electric Motors, Appliances | Versatile, high-speed capable, handles combined loads. |
| Angular Contact Ball | High Radial & Axial (One Direction) | Machine Tool Spindles, Pumps | Requires preload; designed for combined loading. |
| Cylindrical Roller | Very High Radial | Gearboxes, Large Electric Motors | Separable design allows for easy mounting/disassembly. |
Tapered Roller | Very High Radial & Axial | Automotive Wheels, Gearboxes | Handles combined loads; requires precise adjustment. |
Spherical Roller | Very High Radial, Moderate Axial | Vibrating Screens, Heavy Machinery | Excellent misalignment compensation. |
Needle Roller | High Radial (Compact Design) | Transmission Systems, Rocker Arms | Ideal for applications with limited radial space. |
3. Failure Mode Analysis (FMEA) and Root Cause
Understanding how bearings fail prevents future occurrences.
Fatigue Spalling (Surface-Initiated): The only "normal" failure mode. Characterized by material flaking from the raceways due to repeated stress cycles. Calculating the L10 (Bearing Life) via the ISO 281 standard is essential for predicting this.
Contamination: Ingress of abrasive particles causes indentations and leads to rapid wear and vibration. Indicates seal failure or poor handling.
Lubrication Failure: Results in smearing, discoloration (blue/brown), and catastrophic seizure. Caused by incorrect lubricant, insufficient quantity, or excessive temperature.
False Brinelling: Wear caused by small oscillatory movements under load while stationary, common during transport or vibration in idle equipment.
Electrical Erosion (Fluting): Caused by stray currents passing through a bearing, creating a washboard pattern on the races. Requires insulated bearings or shaft grounding.
4. The Cutting Edge: Innovations in Bearing Technology
The field is rapidly evolving to meet new challenges:
Advanced Materials:
Hybrid Ceramic Bearings: Silicon nitride (Si3N4) rolling elements with steel rings. Offer electrical insulation, higher speed capability, reduced weight, and superior performance in contaminated environments.
DLC (Diamond-Like Carbon) Coatings: Ultra-hard, low-friction coatings applied to raceways to drastically reduce wear and extend life.
Integrated Intelligence (IIoT): "Smart bearings" equipped with embedded sensors for Condition-Based Monitoring (CbM). They provide real-time data on vibration, temperature, and load, enabling predictive maintenance and preventing unplanned downtime.
Polymer & Composite Bearings: Engineered thermoplastics offer complete corrosion resistance, dry-running capability, and are ideal for food, beverage, and chemical processing applications.
5. Conclusion: Precision, Application, and foresight
A bearing is a precision component, not a commodity. Its successful application is a testament to rigorous engineering analysis. By moving beyond basic catalog selection and embracing a deep understanding of tribological principles, failure modes, and emerging technologies, engineers can dramatically enhance the performance, reliability, and efficiency of their rotating machinery.
